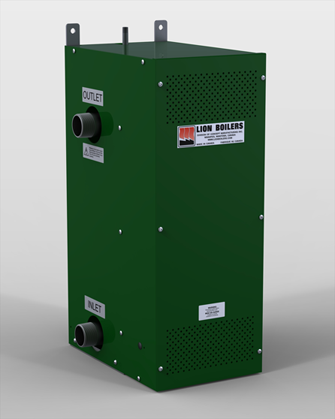

CEB SERIES

(All specifications are subject to change without notice.)

Sizes

from 3 - 30 kW

Light Weight!

It only weighs about 85 lbs, with a tank size of approximately 2 gallons!

Voltages & Wattages
The boiler is available in 240 volt single phase; 208, 480 and 600 volt three phase; other voltages and wattages available on request.
Compact
The compact size and light weight of the boiler allow for easy movement up or down stairwells and loading into or out of a vehicle.
Modulating Boiler
The boiler will operate on the minimum number of elements in order to maintain the desired temperature, and improve comfort.
CSA Approved
All models are CSA approved for Hydronic Heating.
Heating Systems
Ideal for all types of heating systems, radiant floor systems, radiators, and baseboards.
New & Existing Systems
Perfect for both new installations and as a replacement for existing systems.
Mounting
Boiler can be mounted on wall or floor.
Elements
All elements are accessed from top of boiler.
Precise Temperature
Built in, adjustable controller for precise temperature control (70-175 degrees F).
Wiring
Heavy duty wiring
Easy Connections
Boiler is pre-wired with all controls for easy connection of external thermostat and circulating pump.
Insulated Tank
.
LED Lights
LED indicator lights on control board.
Included!
Pressure Relief Valve, Pressure Temperature Gauge, and Air Vent included with all boilers.
Warranty
Ten year limited warranty on tank. Two year limited warranty on all other components.

OPTIONS


Low Water Cut-off
A control to prevent the boiler from coming on if there is any loss of water.
Outdoor Reset Control
Water temperature is modified to match heat loss of the building depending on the outside temperature.
Two Thermostat Inputs
Stat 1 is for normal space heating, Stat 2 (priority thermostat) is for high temperature auxillary/indirect such as domestic hot water.
Load Management

Technical Specifications

Model kW Volts Amps BTU
CEB-3 3 240 12.5 10,236
CEB-5 5 240 20.8 17,061
CEB-6 6 240 25.0 20,473
CEB-7 7 240 32.0 23,885
CEB-8 8 240 33.3 27,297
CEB-9 9 240 37.5 30,709
CEB-10 10 240 41.7 34,121
CEB-12 12 240 50.0 40,946
CEB-15 15 240 62.5 51,182
CEB-18 18 240 75.0 61,419
CEB-19 19 240 79.2 64,831
CEB-20 20 240 83.3 68,243
CEB-23 23 240 95.8 78,479
CEB-24 24 240 100.0 81,891
CEB-25 25 240 104.2 85,304
CEB-28 28 240 116.7 95,540
CEB-208-9 9 240 25.0 30,709
CEB-208-11 11.25 240 31.2 38,387
CEB-208-15 14.7 240 40.8 50,158
CEB-208-22 22.5 240 62.5 76,773
CEB-208-30 29.4 240 81.6 100,317
CEB-480-15 14.7 480 17.7 50,158
CEB-480-30 29.4 480 35.4 100,317
CEB-600-9 9 600 8.7 30,709
CEB-600-15 14.7 600 14.1 50,158
CEB-600-18 18 600 17.3 61,419
CEB-600-24 23.7 600 22.8 80,868
CEB-600-30 29.4 600 28.3 100,317

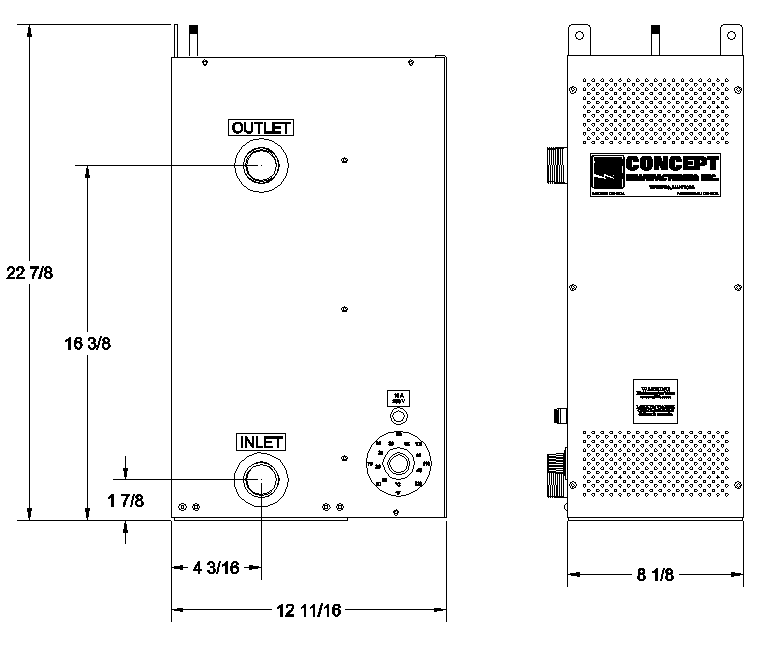

Dimensions (inches)

CEB Dimensions
